Technical Specifications
Omron G5LE-1A4DC48 technical specifications.
General
Coil Current
8.33mA
Coil Resistance
5.76kR
Coil Type
Non-Latching
Coil Voltage (DC)
48V
Contact Current Rating
10A
Contact Material
Tin, Silver
Height
18.5mm
Lead Free
Lead Free
Length
21.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
10ms
Packaging
Tray
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
Series
G5LE
Termination
PC Pin
Throw Configuration
SPST
Width
15.6mm
Compliance
RoHS
Compliant
Datasheet
Omron G5LE-1A4DC48 Datasheet
Download the complete datasheet for Omron G5LE-1A4DC48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

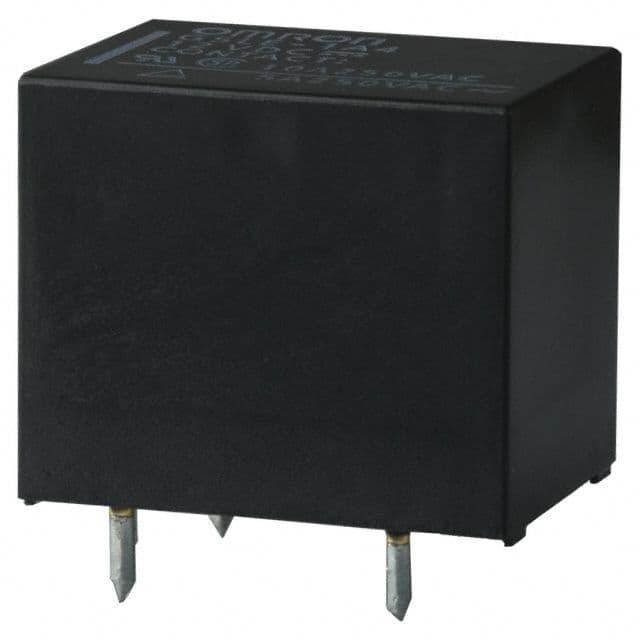

Product Images
