Technical Specifications
Omron G5NB-1A-E DC18 technical specifications.
General
Coil Current
11.1mA
Coil Resistance
1.6kR
Coil Type
Non-Latching
Coil Voltage (DC)
18V
Contact Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Through Hole
Operate Time
10ms
Packaging
Bulk
Radiation Hardening
No
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
G5NB-E
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G5NB-1A-E DC18 Datasheet
Download the complete datasheet for Omron G5NB-1A-E DC18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

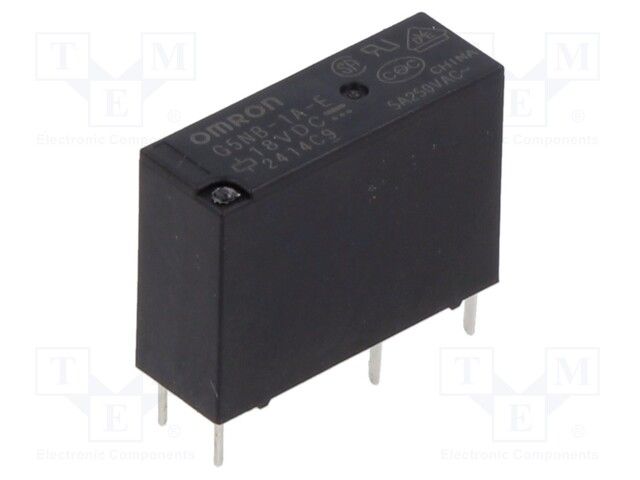

Product Images
