Omron
G5NB-1A4-DC12
Relay SPST-NO miniature sealed, 3A 12Vdc | Omron Electronic Components G5NB1A4DC12
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G5NB-1A4-DC12 technical specifications.
General
Coil Current
16.7mA
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
3A
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Through Hole
Operate Time
10ms
Package Quantity
500
Packaging
Tray
Radiation Hardening
No
Relay Type
General Purpose
Release Time
10ms
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G5NB-1A4-DC12 Datasheet
Download the complete datasheet for Omron G5NB-1A4-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

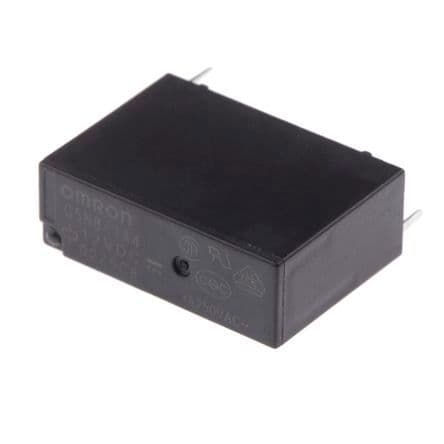

Product Images
