SPDT power relay with a 12VDC non-latching coil, rated for 16A at 250VAC and 5A at 24VDC. Features silver/cadmium contacts, a 400mW coil power consumption, and 360 Ohm coil resistance. Through-hole mounting with PC pin termination, suitable for PCB applications. Operates within a -40°C to 85°C temperature range with a 15ms operate time and 5ms release time. Dimensions are 29x12.7x15.7mm, with a 100,000-hour mechanical life.
PackageDIP
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
Omron G5RL-1-E-HR-DC12 technical specifications.
General
| Package/Case | DIP |
| Coil Current | 33.3mA |
| Coil Power | 400mW |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Cadmium |
| Depth | 12.7mm |
| Height | 15.7mm |
| Length | 29mm |
| Life (Hours) | 100000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole, PCB |
| Operate Time | 15ms |
| Packaging | Bulk |
| Power Consumption | 400mW |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G5RL |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 10g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5RL-1-E-HR-DC12 Datasheet
Download the complete datasheet for Omron G5RL-1-E-HR-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

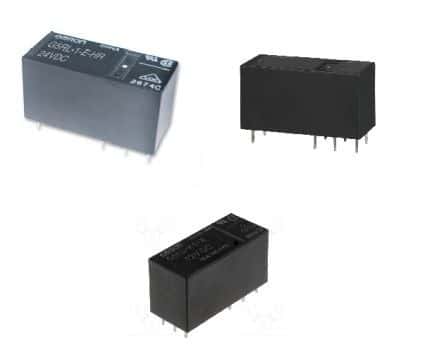

Product Images
