General purpose power relay featuring SPST (Single Pole Single Throw) contact configuration and a 16A contact current rating. Operates with a 12V DC non-latching coil, drawing 44.2mA with 530mW coil power and 272 Ohms coil resistance. Offers 250V AC and 24V DC maximum voltage ratings, with silver-cadmium contact material. Through-hole mounting via PC pins, with 15ms operate and release times, suitable for operation between -40°C and 85°C.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G5RL-1A-E-LN-DC12 technical specifications.
General
Package/Case
DIP
Coil Current
44.2mA
Coil Power
530mW
Coil Resistance
272R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
16A
Contact Material
Silver, Cadmium
Depth
12.7mm
Length
29mm
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
24V
Mount
Through Hole
Operate Time
15ms
Packaging
Bulk
Relay Type
General Purpose
Release Time
15ms
Series
G5RL
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
250V
Weight
10g
Compliance
RoHS
Compliant
Datasheet
Omron G5RL-1A-E-LN-DC12 Datasheet
Download the complete datasheet for Omron G5RL-1A-E-LN-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

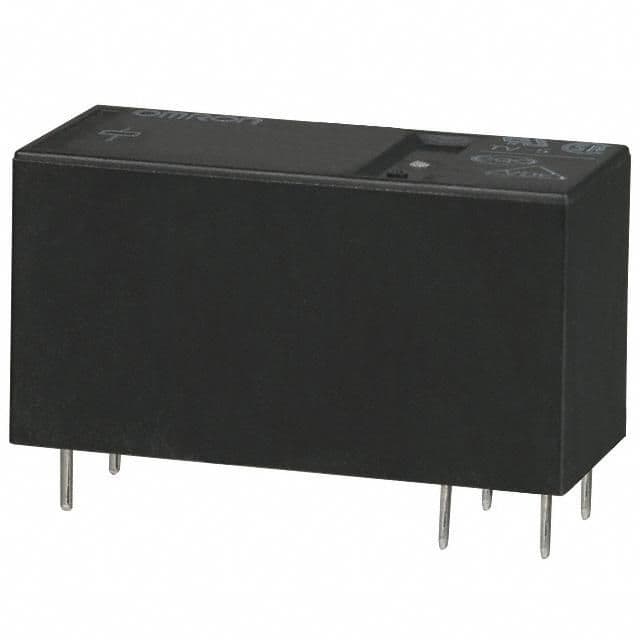

Product Images
