DPDT signal relay featuring a 12V DC coil voltage and 500mW coil power. This through-hole mounted, DIP-packaged electromechanical relay offers a 2A contact current rating with gold and silver contact material. It operates within a -25°C to 65°C temperature range and boasts UL and CSA approvals, with a 125V AC/DC maximum voltage rating.
PackageDIP
Current Rating2A
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Omron G5V-2-DC12 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 41.7mA |
| Coil Power | 500mW |
| Coil Resistance | 288R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Current Rating | 2A |
| Depth | 10.1mm |
| Height | 11.5mm |
| Lead Free | Lead Free |
| Length | 20.5mm |
| Manufacturer Series | G5V-2 |
| Max Current Rating | 2A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 7ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Consumption | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reference Standard | UL |
| Relay Function | DPDT |
| Relay Type | General Purpose |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | G5V-2 |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 5g |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5V-2-DC12 Datasheet
Download the complete datasheet for Omron G5V-2-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

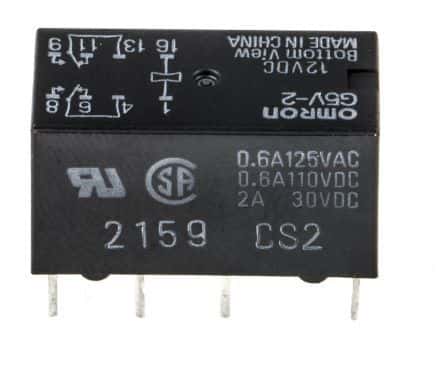

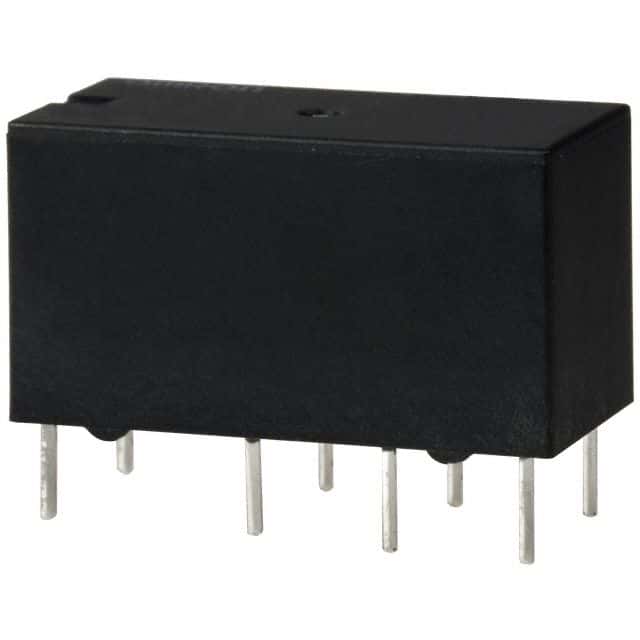

Product Images
