DPDT signal relay featuring a 5VDC dual-coil latching mechanism. Offers a 2A contact current rating with gold/silver contact material and a 1A general-purpose current rating. Operates with 36mA coil current and 139 Ohm coil resistance, consuming 200mW. Mounts via through-hole PCB termination, with 5ms operate and release times. Rated for 250VAC and 220VDC, with UL and CSA approvals.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications

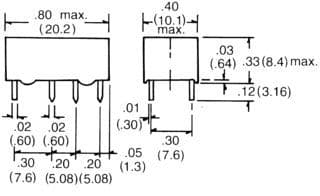

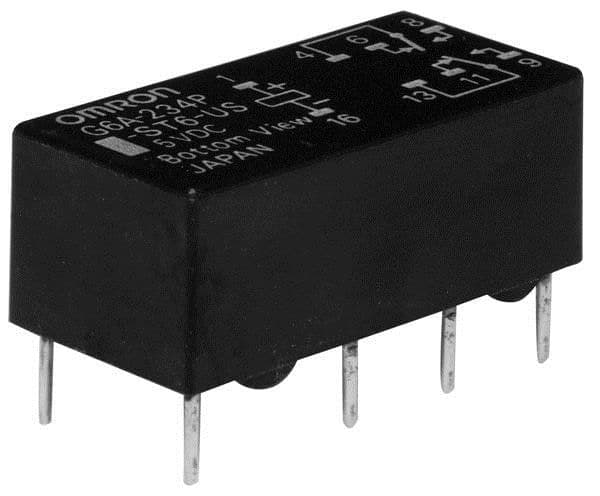

Omron G6AK-234P-ST-US-DC5 technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
36mA
Coil Resistance
139R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
5V
Contact Current Rating
2A
Contact Material
Gold, Silver
Current Rating
1A
Depth
10.1mm
Lead Free
Lead Free
Length
20.2mm
Max Current Rating
2A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole, PCB
Operate Time
5ms
Package Quantity
25
Packaging
Rail/Tube
Power Consumption
200mW
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
No
Series
G6A
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
250V
DC Rated Voltage
220V
Weight
3.5g
Compliance
RoHS
Not CompliantNo
Datasheet
Omron G6AK-234P-ST-US-DC5 Datasheet
Download the complete datasheet for Omron G6AK-234P-ST-US-DC5 to view detailed technical specifications.
