Technical Specifications
Omron G6B-1114P-1-US-DC24 technical specifications.
General
| Coil Current | 8.3mA |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Current Rating | 5A |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Packaging | Tray |
| Power Consumption | 200mW |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-1114P-1-US-DC24 Datasheet
Download the complete datasheet for Omron G6B-1114P-1-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

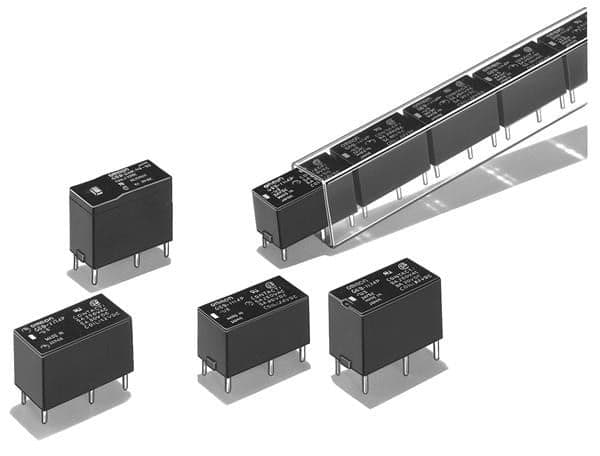

Product Images
