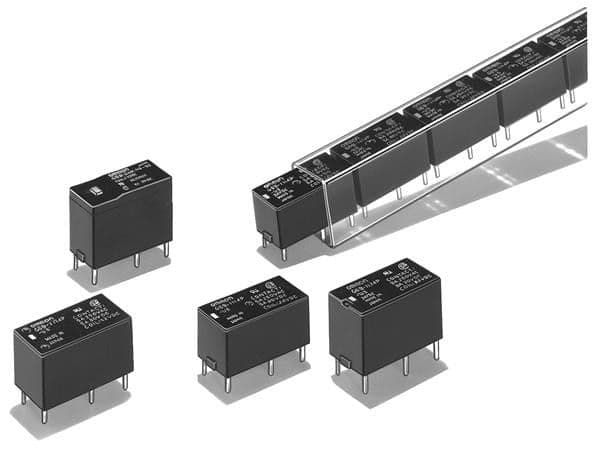

The Omron G6B-1114P-1-USDC9 is a general purpose electromechanical relay with a SPST throw configuration. It can handle a contact current rating of 5A and has a coil voltage of 9V. The relay operates within a temperature range of -25°C to 70°C and has a non-latching coil type. It is available in a bulk packaging with 100 units per package and can be mounted through a hole.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6B-1114P-1-USDC9 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 22.2mA |
| Coil Power | 200mW |
| Coil Resistance | 405R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
