Technical Specifications
Omron G6B-1114P-FD-US-DC24 technical specifications.
General
Coil Current
8.3mA
Coil Resistance
2.88kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
5A
Contact Material
Silver, Tin
Current Rating
5A
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole, PCB
Operate Time
10ms
Packaging
Bulk
Radiation Hardening
No
Relay Type
General Purpose
Release Time
10ms
Series
G6B
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
380V
Weight
3.5g
Compliance
RoHS
Compliant
Datasheet
Omron G6B-1114P-FD-US-DC24 Datasheet
Download the complete datasheet for Omron G6B-1114P-FD-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

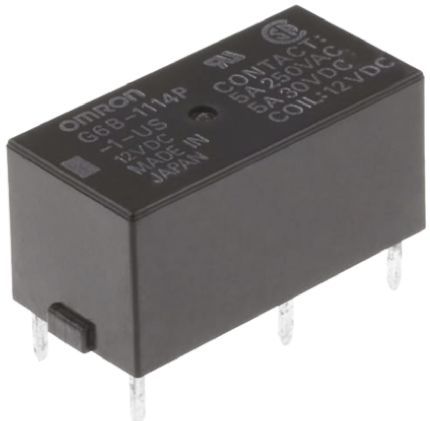

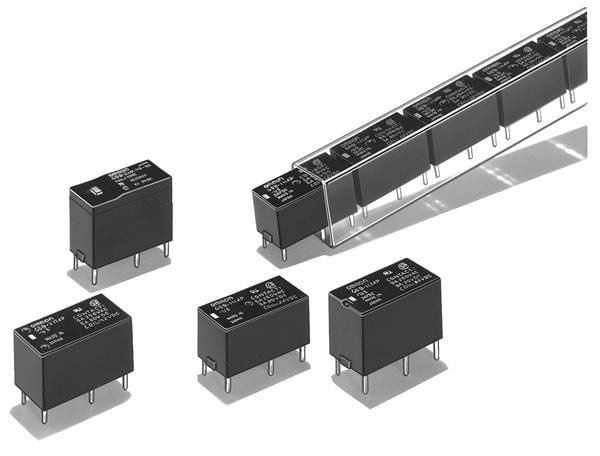

Product Images
