General purpose power relay featuring a Single Pole Single Throw (SPST) contact configuration, rated for 5A at 380VAC or 125VDC. This non-latching relay operates with a 24VDC coil, drawing 8.3mA and consuming 200mW. Mounts via through-hole PCB termination with a 10mm x 10mm x 21mm footprint. Approvals include UL and CSA, with a temperature range of -25°C to 70°C.
Current Rating5A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Omron G6B-1114P-US-DC24 technical specifications.
General
| Approvals | UL, CSA |
| Coil Current | 8.3mA |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Current Rating | 5A |
| Depth | 10mm |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 21mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Packaging | Bulk |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| DC Rated Voltage | 125V |
| Weight | 3.5g |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-1114P-US-DC24 Datasheet
Download the complete datasheet for Omron G6B-1114P-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

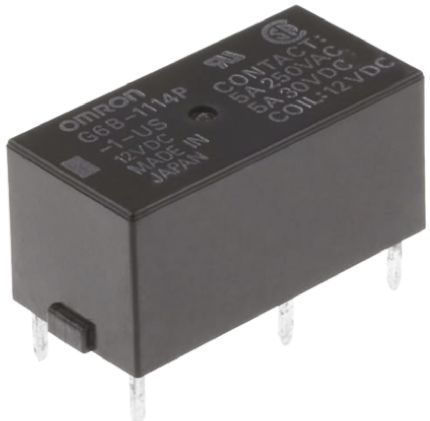

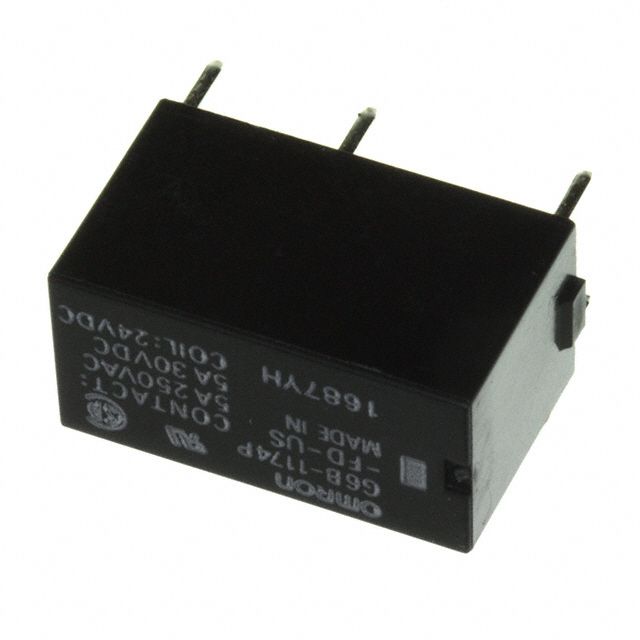

Product Images
