Technical Specifications
Omron G6B-1174P-1-USDC5 technical specifications.
General
Coil Current
40mA
Coil Power
200mW
Coil Resistance
125R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
8A
Contact Material
Silver, Cadmium
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
400
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6B
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6B-1174P-1-USDC5 Datasheet
Download the complete datasheet for Omron G6B-1174P-1-USDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

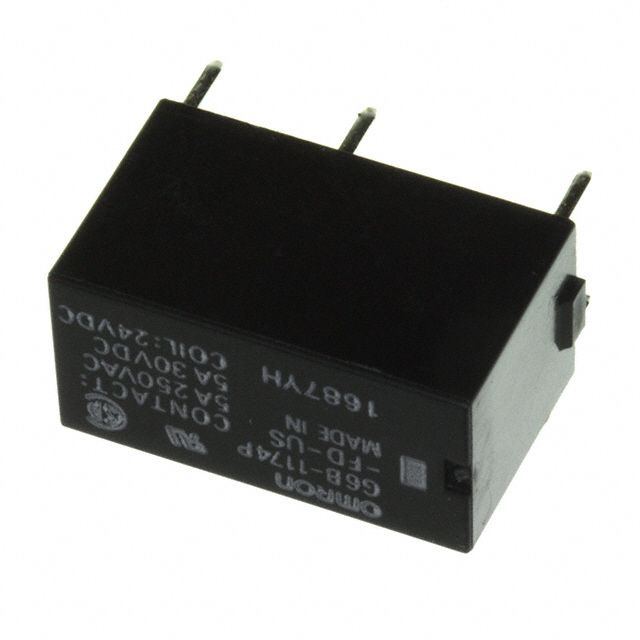

Product Images
