General purpose SPST power relay with an 8A contact current rating and 380V AC / 125V DC voltage rating. Features a 24V DC coil voltage, 200mW coil power, and 8.3mA coil current with 2.88kR coil resistance. Through-hole PCB mountable with solder termination, this relay operates within a -25°C to 70°C temperature range and has a 10ms operate/release time. Approvals include UL and CSA, with lead-free construction.
Current Rating8A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Omron G6B-1174P-FD-US-DC24 technical specifications.
General
| Approvals | UL, CSA |
| Coil Current | 8.3mA |
| Coil Power | 200mW |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Tin |
| Current Rating | 8A |
| Depth | 10mm |
| Height | 12.5mm |
| Lead Free | Lead Free |
| Length | 21.1mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Packaging | Tray |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| Weight | 4.6g |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-1174P-FD-US-DC24 Datasheet
Download the complete datasheet for Omron G6B-1174P-FD-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

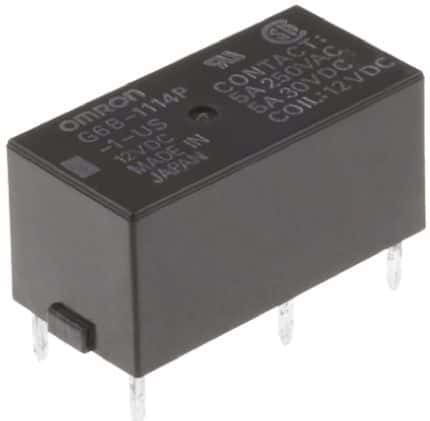

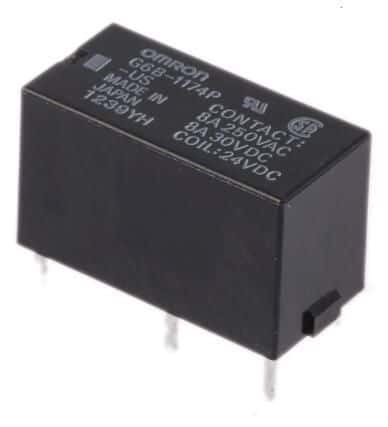

Product Images
