SPST-NO/SPST-NC through-hole power relay with a 24VDC coil voltage and 1.92kΩ coil resistance, drawing 12.5mA and consuming 300mW. Features a 5A contact current rating with Silver, Cadmium contacts and a 380VAC / 125VDC voltage rating. Operates within -25°C to 70°C, with 10ms operate and release times. UL and CSA approved for general purpose power applications.
PackageDIP
Current Rating5A
MountingThrough Hole, PCB
Power300mW
Quick Jump:
Technical Specifications
Omron G6B-2114P-US-DC24 technical specifications.
General
| Application(s) | POWER |
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 12.5mA |
| Coil Power | 300mW |
| Coil Resistance | 1.92kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Current Rating | 5A |
| Depth | 11mm |
| Height | 11mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Consumption | 300mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6B |
| Termination | PC Pin |
| Throw Configuration | SPST, DPST |
| Voltage Rating (AC) | 380V |
| DC Rated Voltage | 125V |
| Weight | 4.5g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-2114P-US-DC24 Datasheet
Download the complete datasheet for Omron G6B-2114P-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

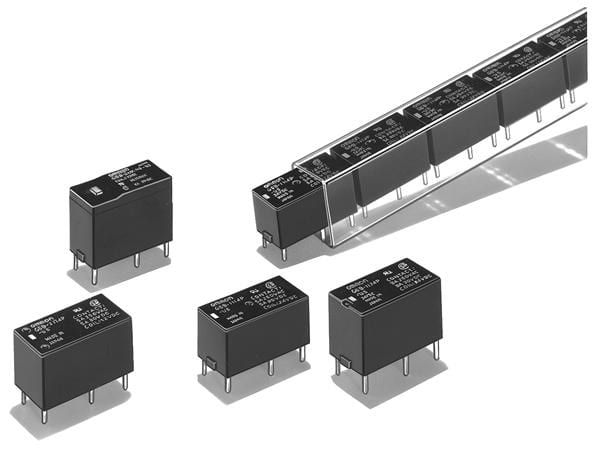

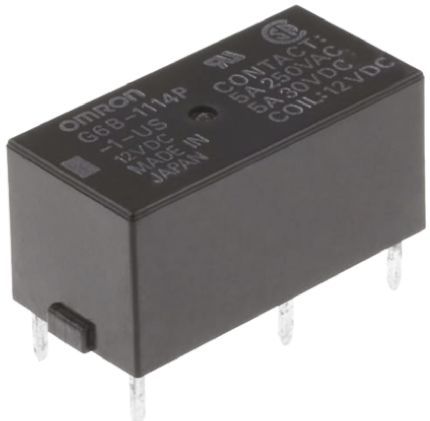

Product Images
