Technical Specifications
Omron G6B-2214P-1-USDC5 technical specifications.
General
Coil Current
60mA
Coil Power
300mW
Coil Resistance
83.3R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
5A
Contact Material
Silver, Cadmium
Height
11mm
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6B
Termination
PC Pin
Throw Configuration
DPST
Width
11mm
Compliance
RoHS
Compliant
Datasheet
Omron G6B-2214P-1-USDC5 Datasheet
Download the complete datasheet for Omron G6B-2214P-1-USDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

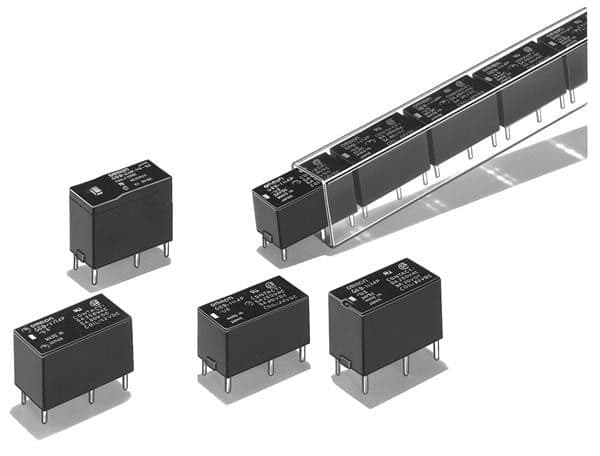

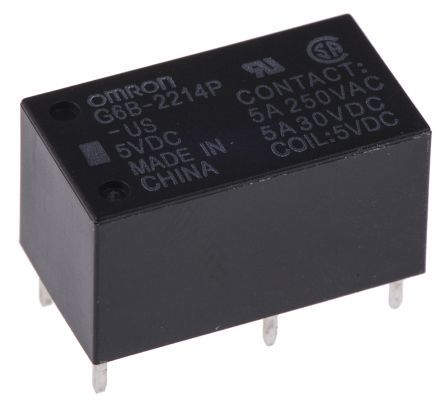

Product Images
