Omron
G6B-2214P-US-DC12
Relay; E-Mech; Power; DPST-NO; Cur-Rtg 5A; Ctrl-V 12DC; Vol-Rtg 250/30AC/DC; PCB Mnt
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G6B-2214P-US-DC12 technical specifications.
General
Package/Case
DIP
Coil Current
25mA
Coil Resistance
480R
Coil Voltage (DC)
12V
Contact Current Rating
5A
Contact Material
Silver, Cadmium
Depth
11mm
Length
20mm
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
10ms
Packaging
Bulk
Radiation Hardening
No
Termination
PC Pin
Throw Configuration
DPST
Voltage Rating (AC)
380V
DC Rated Voltage
125V
Weight
4.5g
Compliance
RoHS
Compliant
Datasheet
Omron G6B-2214P-US-DC12 Datasheet
Download the complete datasheet for Omron G6B-2214P-US-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

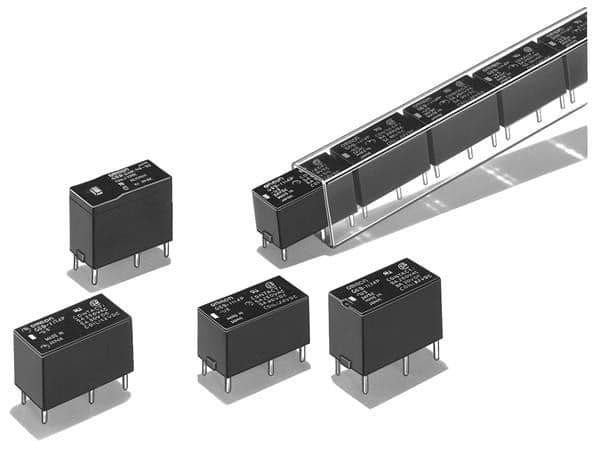

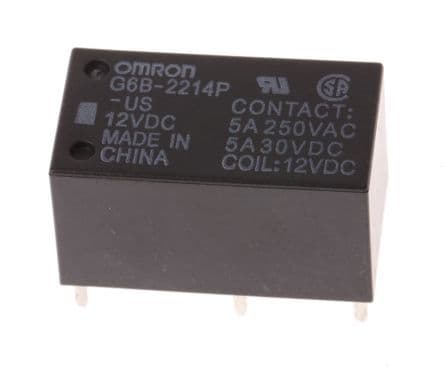

Product Images
