Technical Specifications
Omron G6B-4CB DC24 technical specifications.
General
| Application(s) | POWER |
| Coil Current | 12.5mA |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Life (Hours) | 100000Hour |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail, PCB |
| Operate Time | 10ms |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 15ms |
| Series | G6B-4 |
| Termination | Screw |
| Throw Configuration | 4PDT |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-4CB DC24 Datasheet
Download the complete datasheet for Omron G6B-4CB DC24 to view detailed technical specifications.
No datasheet is available for this part.

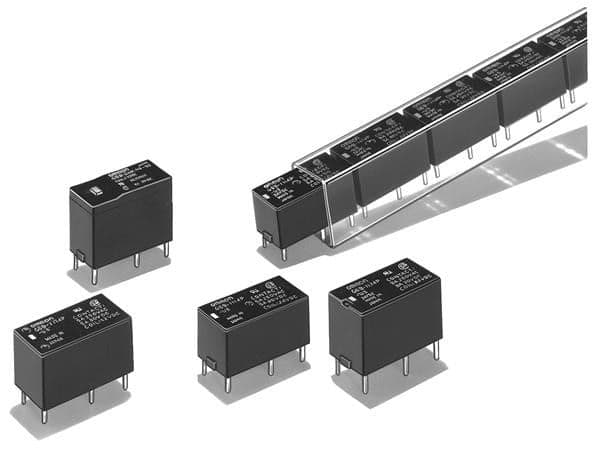

Product Images
