Quick Jump:
Technical Specifications
Omron G6C-1114P-US-DC48 technical specifications.
General
Coil Current
4.2mA
Coil Power
200mW
Coil Resistance
11.4kR
Coil Type
Non-Latching
Coil Voltage (DC)
48V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
SPST
Weight
5.6g
Compliance
RoHS
Compliant
Datasheet
Omron G6C-1114P-US-DC48 Datasheet
Download the complete datasheet for Omron G6C-1114P-US-DC48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

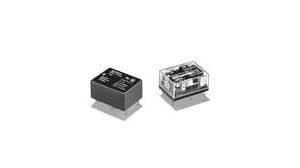

Product Images
