Technical Specifications
Omron G6C-1114P-VD-DC12 technical specifications.
General
Coil Current
16.7mA
Coil Power
200mW
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6C-1114P-VD-DC12 Datasheet
Download the complete datasheet for Omron G6C-1114P-VD-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

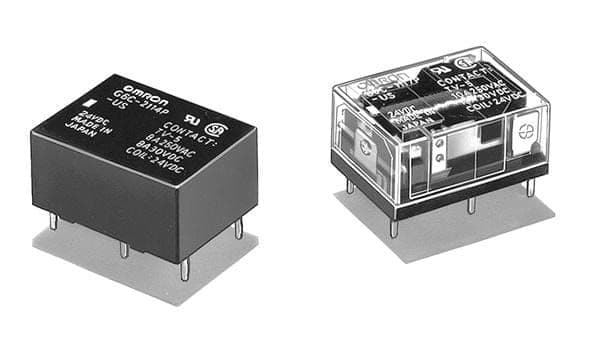

Product Images
