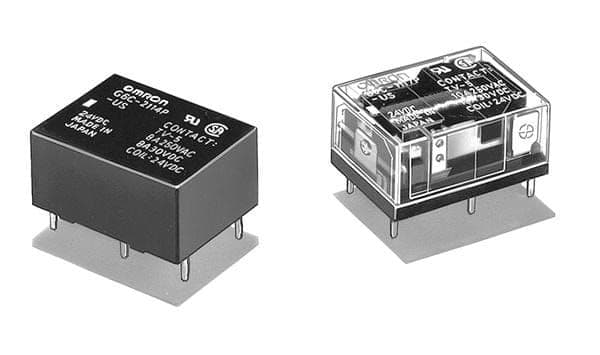

The Omron G6C-2117P-FD-US-DC12 is a general purpose relay with a non-latching coil type and a contact current rating of 8A. It has a switching voltage of 125V and a power consumption of 200mW. The relay is designed for through hole mounting and has an operating temperature range of -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6C-2117P-FD-US-DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 16.7mA |
| Coil Power | 200mW |
| Coil Resistance | 720R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Tin |
| Height | 10mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Consumption | 200mW |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6C |
| Switching Voltage | 125V |
| Termination | PC Pin |
| Throw Configuration | SPST, DPST |
| Width | 15mm |
| RoHS | Compliant |
