Technical Specifications
Omron G6C-2117P-FD-US-DC24 technical specifications.
General
Coil Current
8.3mA
Coil Power
200mW
Coil Resistance
2.88kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Material
Tin, Silver
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Omron G6C-2117P-FD-US-DC24 Datasheet
Download the complete datasheet for Omron G6C-2117P-FD-US-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

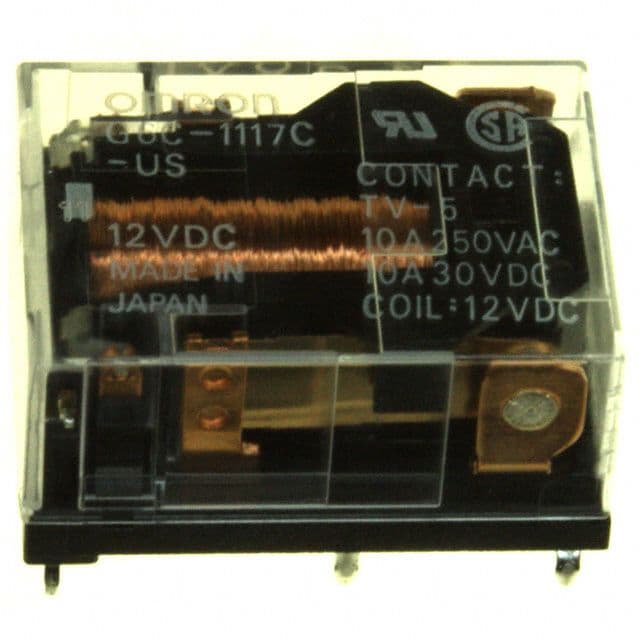

Product Images
