Technical Specifications
Omron G6CK-1114P-FD-USDC12 technical specifications.
General
Coil Current
23.3mA
Coil Power
280mW
Coil Resistance
515R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Tin, Silver
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6CK-1114P-FD-USDC12 Datasheet
Download the complete datasheet for Omron G6CK-1114P-FD-USDC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

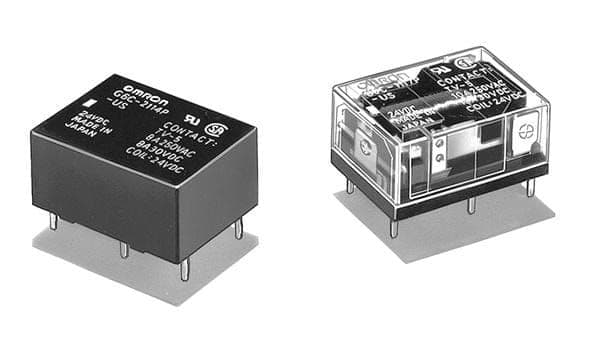

Product Images
