Technical Specifications
Omron G6CU-1117P-FD-US DC24 technical specifications.
General
Coil Current
8.3mA
Coil Resistance
2.88kR
Coil Type
Latching, Single Coil
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Tin, Silver
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Unconfirmed
Datasheet
Omron G6CU-1117P-FD-US DC24 Datasheet
Download the complete datasheet for Omron G6CU-1117P-FD-US DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

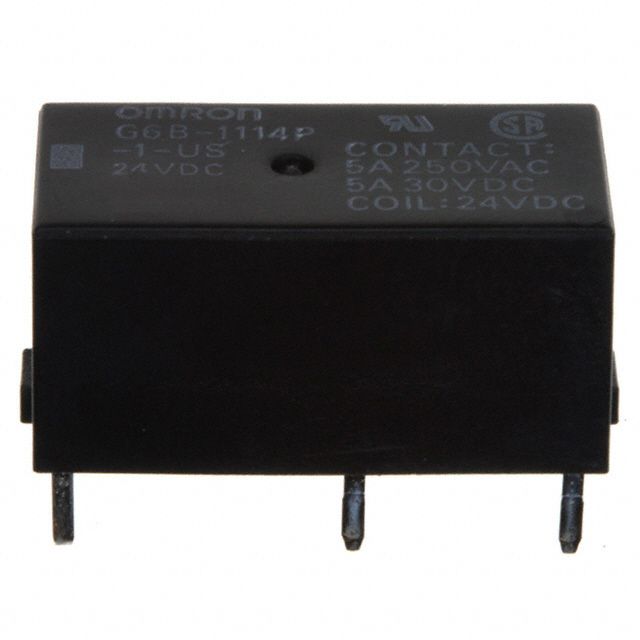

Product Images
