Technical Specifications
Omron G6CU-1117P-FD-USDC5 technical specifications.
General
Coil Current
40mA
Coil Resistance
125R
Coil Type
Latching, Single Coil
Coil Voltage (DC)
5V
Contact Current Rating
10A
Contact Material
Tin, Silver
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
10ms
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
Series
G6C
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6CU-1117P-FD-USDC5 Datasheet
Download the complete datasheet for Omron G6CU-1117P-FD-USDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

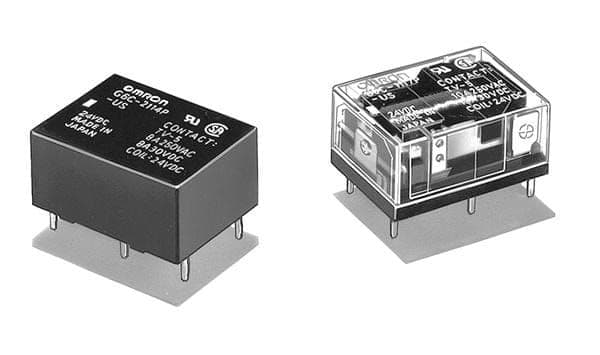

Product Images
