General purpose PCB power relay featuring a 12V DC single-coil latching mechanism. Offers an 8A contact current rating with Silver/Cadmium contacts and SPST/DPST throw configurations. Operates within a -25°C to 70°C temperature range, with 10ms operate and release times. Through-hole mounting with PC pin termination, rated for 250V AC and 125V DC.
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G6CU-2117P-US-DC12 technical specifications.
General
| Coil Current | 16.7mA |
| Coil Power | 200mW |
| Coil Resistance | 720R |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Cadmium |
| Lead Free | Lead Free |
| Max Current Rating | 8A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G6C |
| Termination | PC Pin |
| Throw Configuration | SPST, DPST |
| Weight | 5.6g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6CU-2117P-US-DC12 Datasheet
Download the complete datasheet for Omron G6CU-2117P-US-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

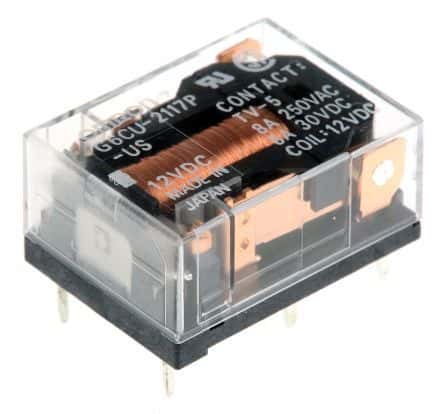

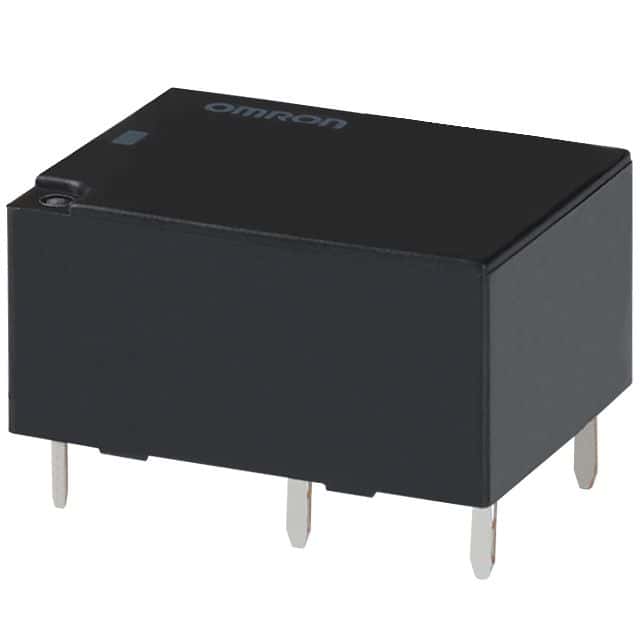

Product Images
