Technical Specifications
Omron G6D-1A-ASIDC9 technical specifications.
General
| Coil Current | 22.2mA |
| Coil Resistance | 405R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G6D-ASI |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 3g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6D-1A-ASIDC9 Datasheet
Download the complete datasheet for Omron G6D-1A-ASIDC9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

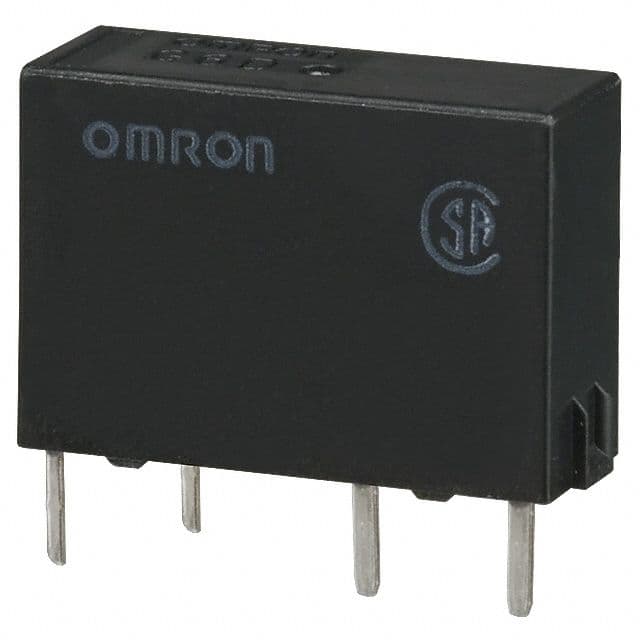

Product Images
