Technical Specifications
Omron G6K-2F-RF-S-TR03DC3 technical specifications.
General
Coil Current
33mA
Coil Power
100mW
Coil Resistance
91R
Coil Type
Non-Latching
Coil Voltage (DC)
3V
Contact Current Rating
1A
Contact Material
Gold, Silver
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
60V
Mount
Surface Mount
Operate Time
3ms
Package Quantity
300
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
RF
Release Time
3ms
RoHS Compliant
Yes
Series
G6K-RF
Termination
Gull Wing
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6K-2F-RF-S-TR03DC3 Datasheet
Download the complete datasheet for Omron G6K-2F-RF-S-TR03DC3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

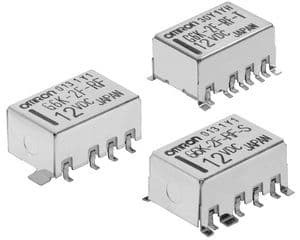

Product Images
