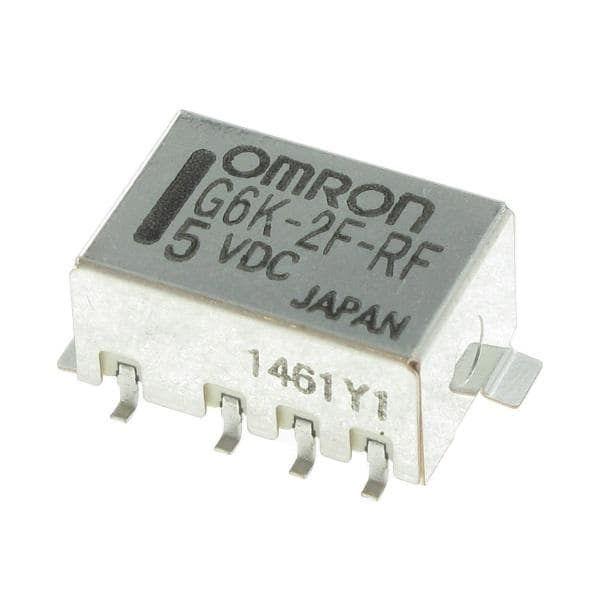

The G6K-2F-RF-T-TR03DC6 is a 6V non-latching RF relay with a coil power rating of 100mW and a contact current rating of 1A. It has a maximum voltage rating of 60V and a maximum operating temperature of 70°C. The relay is designed for surface mount applications and features a gull wing termination. It has a fast operate time of 3ms and a matching release time of 3ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6K-2F-RF-T-TR03DC6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 17.6mA |
| Coil Power | 100mW |
| Coil Resistance | 341R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Operate Time | 3ms |
| Package Quantity | 300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Relay Type | RF |
| Release Time | 3ms |
| Series | G6K-RF |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| RoHS | Compliant |
