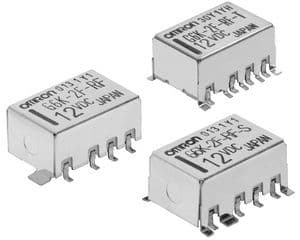

The Omron G6K-2F-RF-T-TR09DC3 is a surface mount RF non-latching relay with a coil voltage of 3V and current of 33mA. It has a contact current rating of 1A and a maximum voltage rating of 60V. The relay operates within a temperature range of -40°C to 70°C and is packaged in tape and reel with 900 units per package. It is RoHS compliant and features a gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6K-2F-RF-T-TR09DC3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 33mA |
| Coil Power | 100mW |
| Coil Resistance | 91R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Operate Time | 3ms |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Relay Type | RF |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | G6K-RF |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| RoHS | Compliant |
