Technical Specifications
Omron G6K-2F-Y 3VDC technical specifications.
General
| Package/Case | SMD/SMT |
| Coil Current | 33mA |
| Coil Resistance | 91R |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Depth | 7.8mm |
| Length | 10mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Operate Time | 3ms |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K-2F-Y 3VDC Datasheet
Download the complete datasheet for Omron G6K-2F-Y 3VDC to view detailed technical specifications.
No datasheet is available for this part.

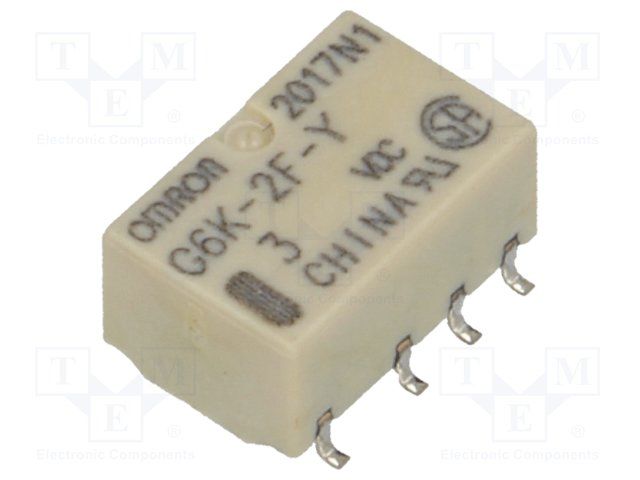

Product Images
