DPDT signal relay featuring a 12VDC coil with 9.1mA current and 1.31kΩ resistance. Offers 1A contact current rating with gold/silver contact material, and a 2A overall current rating. Surface mount design with gull wing termination, measuring 10mm x 7.8mm x 5.2mm and weighing 0.7g. Operates within a -40°C to 70°C temperature range, with 3ms operate and release times. Rated for 125VAC and 60VDC.
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G6K-2F-Y DC12 technical specifications.
General
| Coil Current | 9.1mA |
| Coil Resistance | 1.31kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Current Rating | 2A |
| Depth | 7.8mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Operate Time | 3ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 3ms |
| Series | G6K |
| Switching Current | 1A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 60V |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K-2F-Y DC12 Datasheet
Download the complete datasheet for Omron G6K-2F-Y DC12 to view detailed technical specifications.
No datasheet is available for this part.

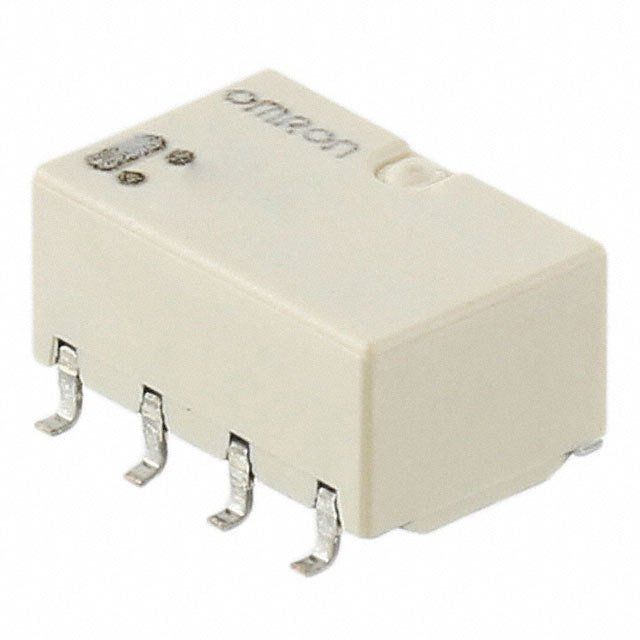

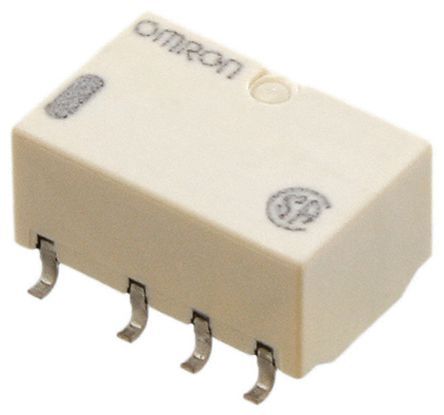

Product Images
