SMD signal relay featuring a DPDT contact configuration and 2 change-overs. Coil operates at 12V DC with 9.1mA current and 100mW power, boasting a 1.315kR coil resistance. Contact rating is 1A with gold/silver contact material, suitable for signal applications. Dimensions are 10mm (L) x 6.5mm (W) x 5.2mm (H), with a depth of 7.8mm. Offers a mechanical life of 100,000 hours and operates within a -40°C to 70°C temperature range.
Current Rating9.1mA
MountingPCB
Quick Jump:
Technical Specifications
Omron G6K-2F-Y12DC technical specifications.
General
| Application(s) | SIGNAL |
| Coil Current | 9.1mA |
| Coil Power | 100mW |
| Coil Resistance | 1.315kR |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Contact Type | 2 change-overs |
| Current Rating | 9.1mA |
| Depth | 7.8mm |
| Height | 5.2mm |
| Length | 10mm |
| Life (Hours) | 100000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | PCB |
| Operate Time | 3ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 60V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K-2F-Y12DC Datasheet
Download the complete datasheet for Omron G6K-2F-Y12DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

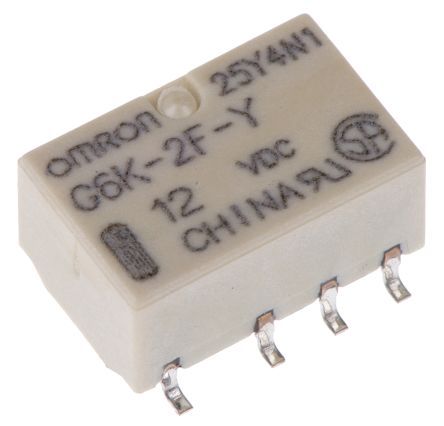

Product Images
