Technical Specifications
Omron G6K-2F-YDC5 technical specifications.
General
| Coil Current | 21.1mA |
| Coil Power | 100mW |
| Coil Resistance | 237R |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Depth | 7.8mm |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 2 |
| Operate Time | 3ms |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Switching Current | 1A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 60V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K-2F-YDC5 Datasheet
Download the complete datasheet for Omron G6K-2F-YDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

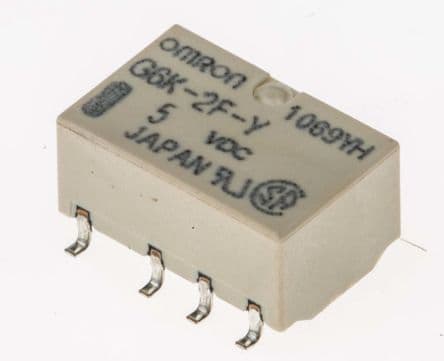

Product Images
