DPDT signal relay with a 5VDC coil voltage and 1A contact current rating. Features gold/silver contact material, 125VAC/60VDC voltage ratings, and a 3ms operate/release time. This non-latching, surface mount relay operates within a -40°C to 70°C temperature range.
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Omron G6K-2G-Y-DC5 technical specifications.
General
| Coil Current | 21.1mA |
| Coil Resistance | 237R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Depth | 6.5mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Operate Time | 3ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Telecom |
| Release Time | 3ms |
| Series | G6K |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 60V |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K-2G-Y-DC5 Datasheet
Download the complete datasheet for Omron G6K-2G-Y-DC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

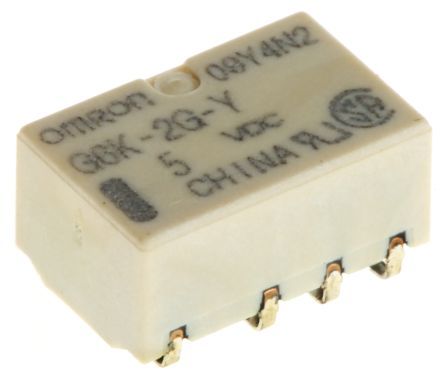

Product Images
