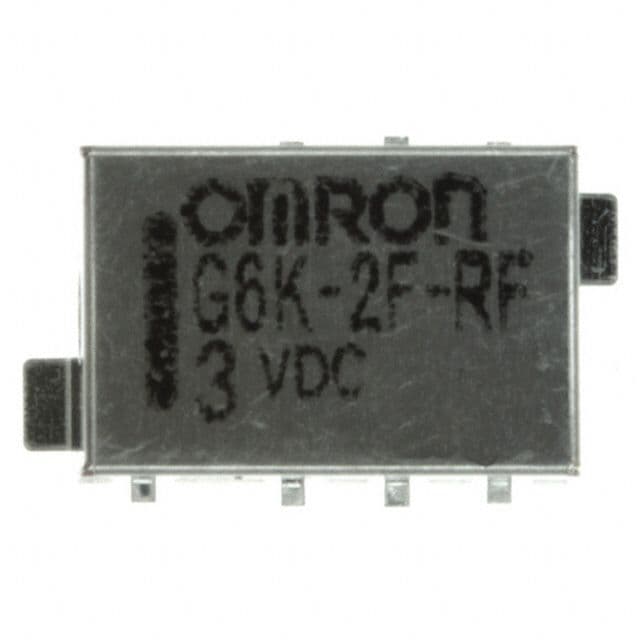

DPDT signal relay featuring a 3V DC non-latching coil with 33mA coil current and 100mW coil power. This through-hole mounted component offers a 1A contact current rating with gold/silver contact material, suitable for up to 125V AC and 60V DC. Operating within a -40°C to 70°C temperature range, it boasts a 3ms operate and release time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6K-2P-DC3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G6K-2P-DC3 technical specifications.
| Package/Case | DIP |
| Coil Current | 33mA |
| Coil Power | 100mW |
| Coil Resistance | 91R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Through Hole |
| Operate Time | 3ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 3ms |
| Series | G6K |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Weight | 0.7g |
| RoHS | Compliant |
