DPDT signal relay with a 1A contact current rating and 125VAC/60VDC voltage rating. Features a 24VDC non-latching coil with 4.6mA coil current and 100mW coil power. Through-hole mounting with PC pin termination, housed in a DIP package. Operates within a -40°C to 70°C temperature range with 3ms operate and release times. Approvals include UL and CSA.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power100mW
Quick Jump:
Technical Specifications
Omron G6K2PDC24 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 4.6mA |
| Coil Power | 100mW |
| Coil Resistance | 5.22kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Current Rating | 1A |
| Depth | 6.5mm |
| Length | 10mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Through Hole, PCB |
| Operate Time | 3ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 100mW |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 3ms |
| Series | G6K |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6K2PDC24 Datasheet
Download the complete datasheet for Omron G6K2PDC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

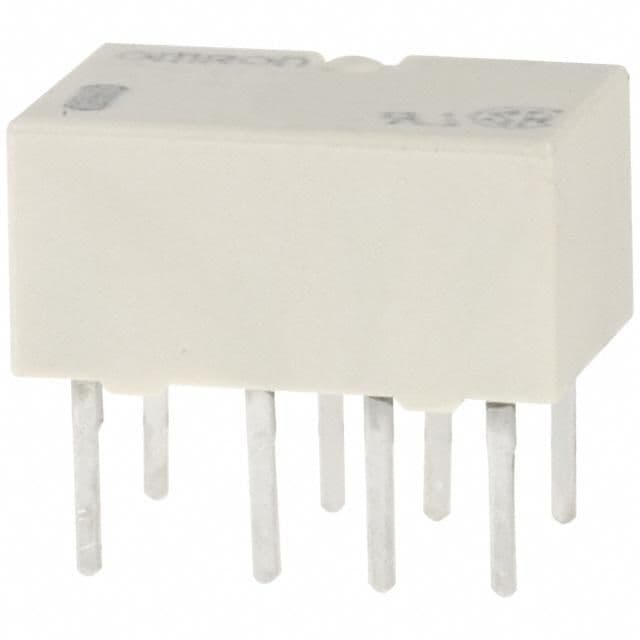

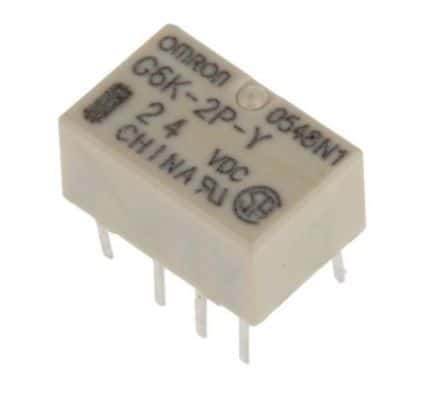

Product Images
