DPDT signal relay featuring a 12VDC single-winding latching coil with 100mW power consumption and 9.1mA coil current. Offers a 1A contact current rating with gold/silver contact material and a maximum voltage rating of 125VAC or 60VDC. Designed for surface mount applications with gull wing termination, this telecom relay operates within a -40°C to 70°C temperature range and boasts 3ms operate and release times.
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Omron G6KU-2F-Y-DC12 technical specifications.
General
| Coil Current | 9.1mA |
| Coil Power | 100mW |
| Coil Resistance | 1.315kR |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Operate Time | 3ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 100mW |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 3ms |
| Series | G6K |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6KU-2F-Y-DC12 Datasheet
Download the complete datasheet for Omron G6KU-2F-Y-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

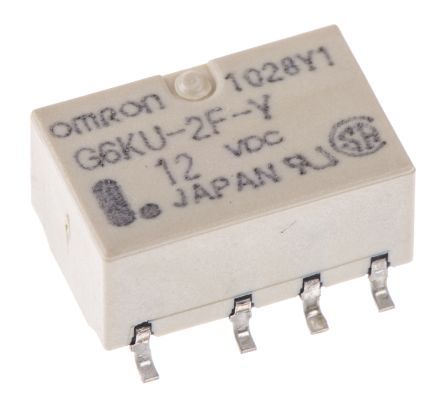

Product Images
