DPDT signal relay featuring a 1A contact current rating and 3VDC coil voltage. This latching, single-coil relay offers a 91 Ohm coil resistance and 33mA coil current, with a power consumption of 100mW. Designed for surface mount applications with gull wing termination, it operates within a temperature range of -40°C to 70°C and has a 3ms operate/release time. Contact material includes gold and silver, with AC and DC voltage ratings of 125V and 60V respectively.
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Omron G6KU-2F-Y-DC3 technical specifications.
General
Coil Current
33mA
Coil Power
100mW
Coil Resistance
91R
Coil Type
Latching, Single Coil
Coil Voltage (DC)
3V
Contact Current Rating
1A
Contact Material
Gold, Silver
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
60V
Mount
Surface Mount
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
100mW
Radiation Hardening
No
Relay Type
Telecom
Release Time
3ms
Series
G6K
Termination
Gull Wing
Throw Configuration
DPDT
Weight
0.7g
Compliance
RoHS
Compliant
Datasheet
Omron G6KU-2F-Y-DC3 Datasheet
Download the complete datasheet for Omron G6KU-2F-Y-DC3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

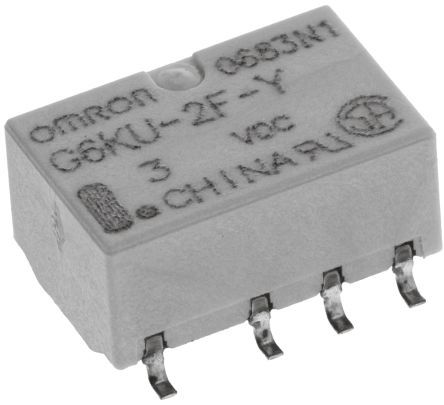

Product Images
