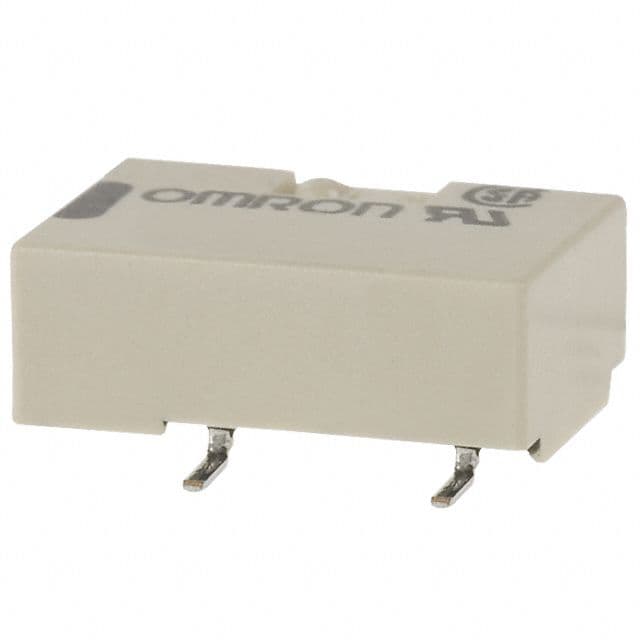

Surface mount signal relay with SPST-NO contact configuration, rated for 1A at 125VAC or 60VDC. Features a 24VDC coil with 9.6mA current, 230mW power consumption, and 2.504kΩ resistance. Operates within a -40°C to 70°C temperature range, offering 5ms operate and release times. Dimensions are 10.6x8.4x4.1mm, with gull wing termination. This lead-free, RoHS compliant component is designed for telecom applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6L-1F-DC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 9.6mA |
| Coil Power | 230mW |
| Coil Resistance | 2.504kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 1A |
| Current Rating | 1A |
| Depth | 8.4mm |
| Height | 4.1mm |
| Lead Free | Lead Free |
| Length | 10.6mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Operate Time | 5ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 230mW |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G6L |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| Weight | 0.6g |
| RoHS | Compliant |
