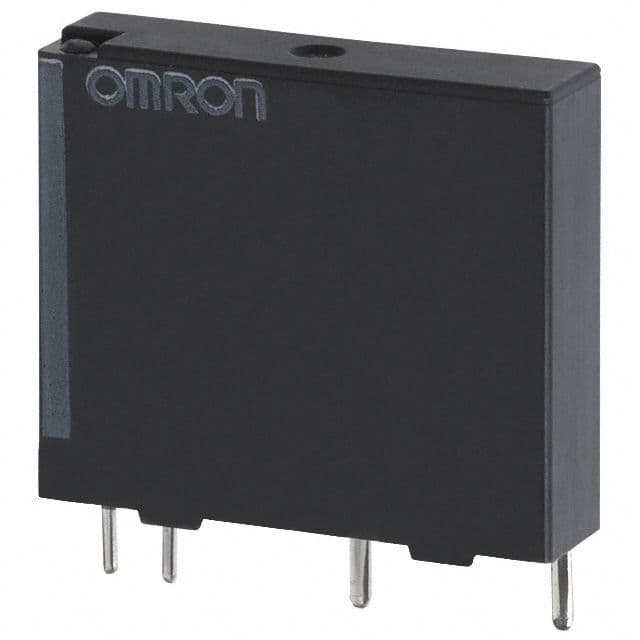

SPST-NO, 5VDC coil voltage, 3A contact current rating power PCB relay. Features silver contact material, 270VAC/125VDC voltage rating, and 3A current rating. Operates with 10ms operate time and 5ms release time. Through-hole PCB mountable in a SIP package. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6M-1A-DC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE |
| Package/Case | SIP |
| Coil Current | 24mA |
| Coil Power | 120mW |
| Coil Resistance | 208R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 3A |
| Contact Material | Silver |
| Current Rating | 3A |
| Depth | 5.08mm |
| Lead Free | Lead Free |
| Length | 20.3mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 270V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Bulk |
| Power Consumption | 120mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G6M |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 270V |
| DC Rated Voltage | 125V |
| Weight | 4g |
| RoHS | Compliant |
