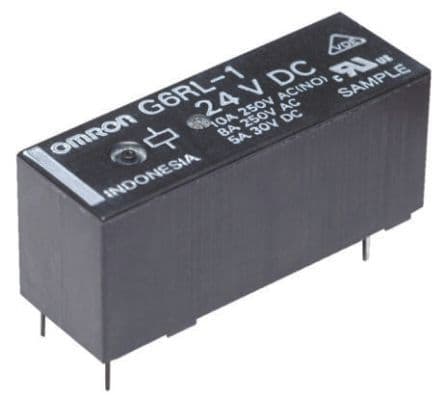

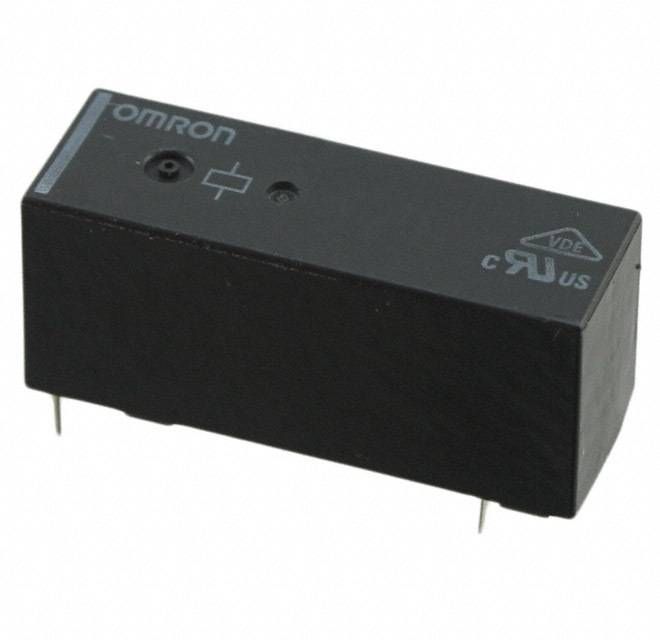

SPDT general purpose power relay featuring a 24V DC non-latching coil with 9.2mA current, 220mW power, and 2.618kR resistance. Contact ratings include 8A current and silver tin material, with AC and DC voltage ratings of 400V and 300V respectively. Operate and release times are 10ms and 5ms, with a -40°C to 85°C operating temperature range. Through-hole mounting with PC pin termination, dimensions of 12.3mm height and 10mm width, and a weight of 7.8g.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6RL-1-ASI-DC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 9.2mA |
| Coil Power | 220mW |
| Coil Resistance | 2.618kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Height | 12.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G6RL |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Weight | 7.8g |
| Width | 10mm |
| RoHS | Compliant |
