Technical Specifications
Omron G6RL-1-ASI-PL-SPDC3 technical specifications.
General
Coil Current
73.3mA
Coil Power
220mW
Coil Resistance
40R
Coil Type
Non-Latching
Coil Voltage (DC)
3V
Contact Current Rating
8A
Contact Material
Tin, Silver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
10ms
Package Quantity
20
Packaging
Bulk
Relay Type
General Purpose
Release Time
5ms
Series
G6RL
Termination
PC Pin
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6RL-1-ASI-PL-SPDC3 Datasheet
Download the complete datasheet for Omron G6RL-1-ASI-PL-SPDC3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

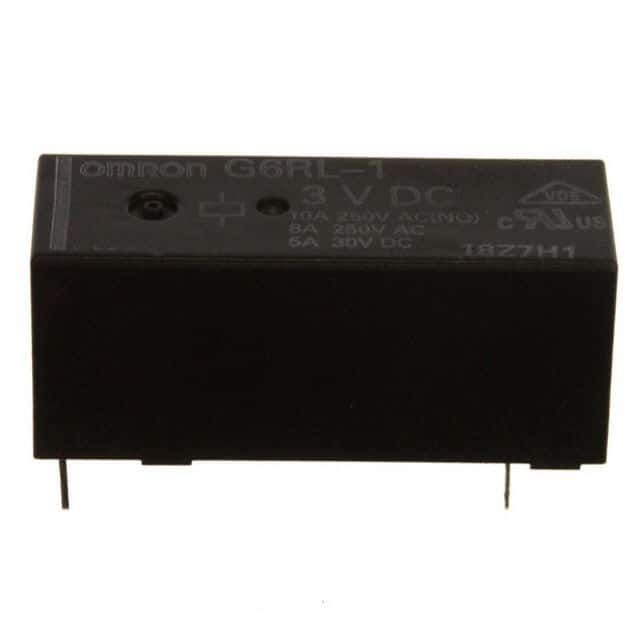

Product Images
