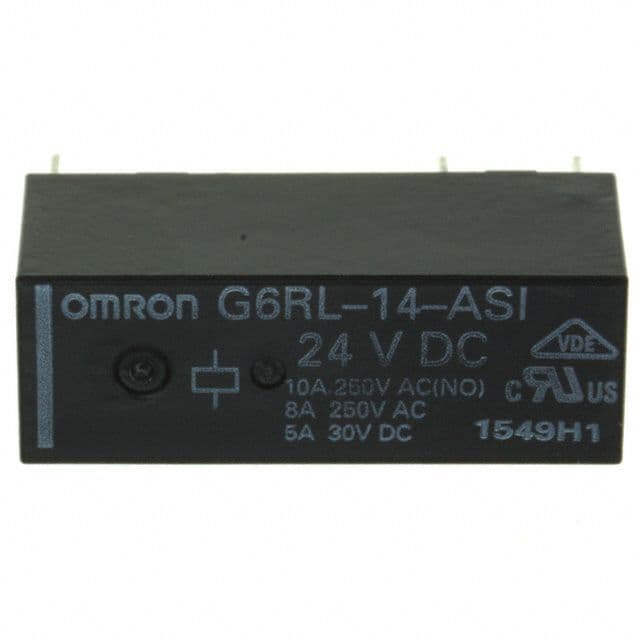

The G6RL-14 Series General Purpose SPDT Power Relay is a non-latching electromechanical relay with a coil current of 12.2mA and a coil power of 220mW. It has a contact current rating of 8A and is rated for operation between -40°C and 85°C. The relay is available in bulk packaging with 100 units per package and features a PC Pin termination. It has a fast operate time of 10ms and a release time of 5ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6RL-14-ASIDC18 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 12.2mA |
| Coil Power | 220mW |
| Coil Resistance | 1.47kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 18V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G6RL |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| RoHS | Compliant |
