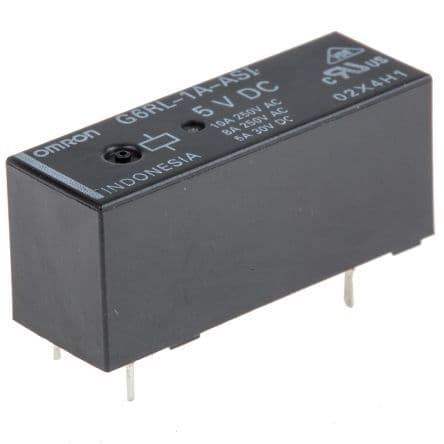

General purpose power relay featuring a 5V DC non-latching coil with 44mA coil current and 220mW coil power. Offers a 10A contact current rating with Tin, Silver contact material. Designed for PCB mounting with through-hole termination, this relay has a SPDT/SPST throw configuration and operates within a -40°C to 85°C temperature range. AC voltage rating is 400V, DC voltage rating is 300V, with operate and release times of 10ms and 5ms respectively.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6RL-1A-ASIDC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | POWER |
| Coil Current | 44mA |
| Coil Power | 220mW |
| Coil Resistance | 113R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Depth | 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G6RL |
| Termination | PC Pin |
| Throw Configuration | SPDT, SPST |
| RoHS | Compliant |
