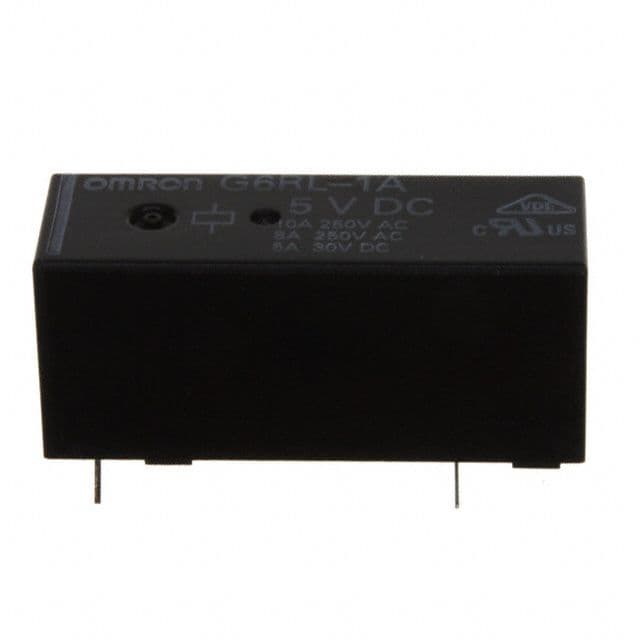

SPST power relay with a 10A contact current rating and silver contact material. Features a 5V DC non-latching coil with 44mA coil current and 113Ω coil resistance. Operates within a -40°C to 85°C temperature range, offering 10ms operate time and 5ms release time. Through-hole PCB mountable with PC pin termination, rated for 400V AC and 300V DC.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron G6RL-1ADC5 technical specifications.
General
Application(s)
POWER
Coil Current
44mA
Coil Resistance
113R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
10A
Contact Material
Silver
Depth
10mm
Height
12.3mm
Length
28.5mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Max Voltage Rating (DC)
300V
Mount
Through Hole, PCB
Operate Time
10ms
Packaging
Tray
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G6RL
Termination
PC Pin
Throw Configuration
SPST
Weight
7.8g
Compliance
RoHS
Compliant
Datasheet
Omron G6RL-1ADC5 Datasheet
Download the complete datasheet for Omron G6RL-1ADC5 to view detailed technical specifications.
