Technical Specifications
Omron G6RN-1-AP4DC12 technical specifications.
General
Coil Current
18.3mA
Coil Resistance
655R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
8A
Contact Material
Silver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
15ms
Packaging
Bulk
Relay Type
General Purpose
Release Time
5ms
Series
G6RN
Termination
PC Pin
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6RN-1-AP4DC12 Datasheet
Download the complete datasheet for Omron G6RN-1-AP4DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

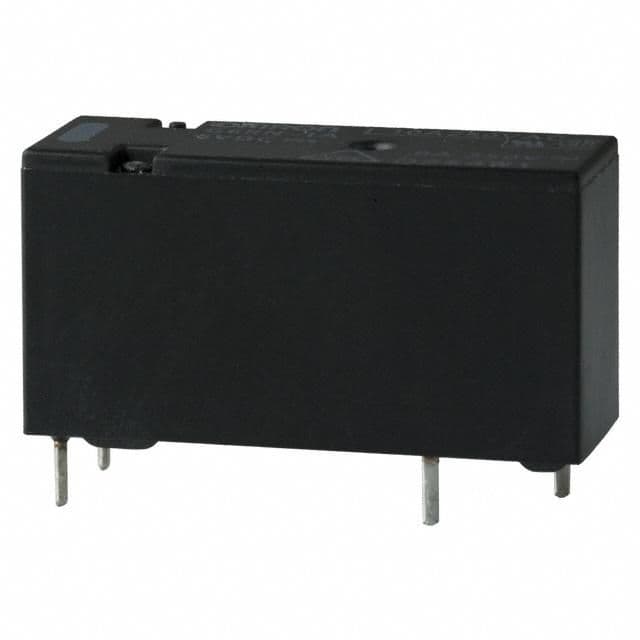

Product Images
