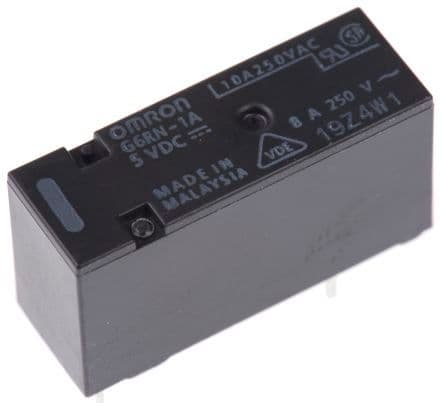

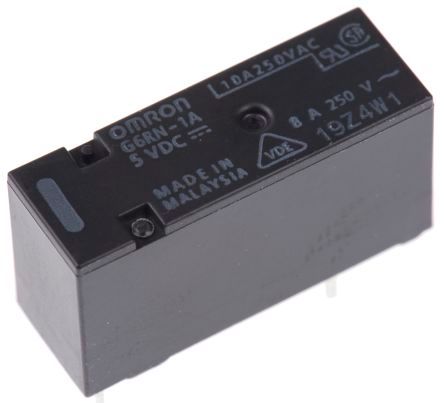

The Omron G6RN-1A-DC5 is a power relay with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum current rating of 8A and a maximum voltage rating of 30V DC. The relay has a coil resistance of 114R and a coil voltage of 5V DC. It is available in a through-hole package and has a power consumption of 220mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6RN-1A-DC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 44mA |
| Coil Resistance | 114R |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Lead Free | Lead Free |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Packaging | Rail/Tube |
| Power Consumption | 220mW |
| Radiation Hardening | No |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 9g |
| RoHS | Compliant |
