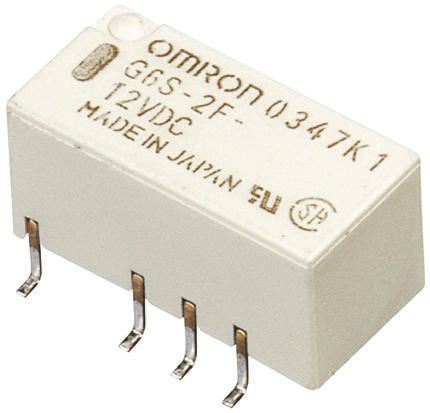

DPDT signal relay with 2 Form C contacts, featuring a 24VDC coil voltage and 8.3mA coil current. This surface mount relay offers a maximum switching current of 2A and a maximum switching power of 60W/62.5VA, with AC switching voltage up to 250V and DC switching voltage up to 220V. Designed with 8 gull wing terminals, it operates within a temperature range of -40°C to 85°C and has an operate time of 4ms.
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G6S-2F DC24 technical specifications.
General
Contact Arrangement
DPDT
Contact Form
2 Form C
DC Coil Voltage
24V
Coil Current
8.3mA
Coil Resistance
2.88KOhm
Maximum Pick-Up Voltage
18VDC
Minimum Dropout Voltage
2.4VDC
Maximum AC Switching Voltage
250V
Maximum DC Switching Voltage
220V
Maximum Switching Current
2A
Maximum Switching Power
60W|62.5VA
Mounting
Surface Mount
Termination Style
Gull Wing
Number of Terminals
8
Relay Construction
Non-Latching
Operate Time
4ms
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Compliance
RoHS
Yes
RoHS Version
2011/65/EU, 2015/863
