DPDT telecom signal relay featuring a 12V DC non-latching coil with 200mW power consumption and 720 Ohm resistance. Contacts rated for 2A, constructed from gold and silver, with a maximum AC voltage rating of 250V and DC voltage rating of 220V. Surface mountable with gull wing termination, offering 4ms operate and release times. Operates within a -40°C to 85°C temperature range.
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Omron G6S-2F-Y-DC12 technical specifications.
General
| Coil Current | 16.7mA |
| Coil Power | 200mW |
| Coil Resistance | 720R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Surface Mount |
| Operate Time | 4ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 4ms |
| Series | G6S |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Weight | 2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6S-2F-Y-DC12 Datasheet
Download the complete datasheet for Omron G6S-2F-Y-DC12 to view detailed technical specifications.
No datasheet is available for this part.

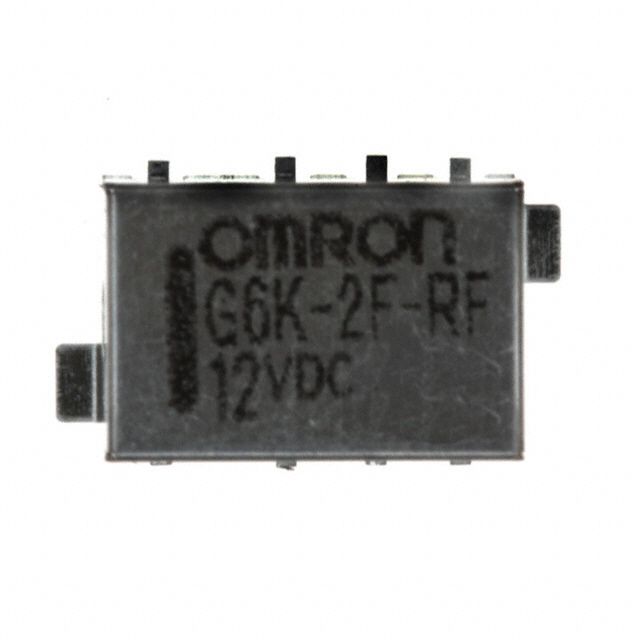

Product Images
