MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G6S-2F-Y-TR-DC3 technical specifications.
General
Coil Current
66.7mA
Coil Power
200mW
Coil Resistance
45R
Coil Type
Non-Latching
Coil Voltage (DC)
3V
Contact Current Rating
2A
Contact Material
Gold, Silver
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
4ms
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
Telecom
Release Time
4ms
Series
G6S
Termination
Gull Wing
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6S-2F-Y-TR-DC3 Datasheet
Download the complete datasheet for Omron G6S-2F-Y-TR-DC3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

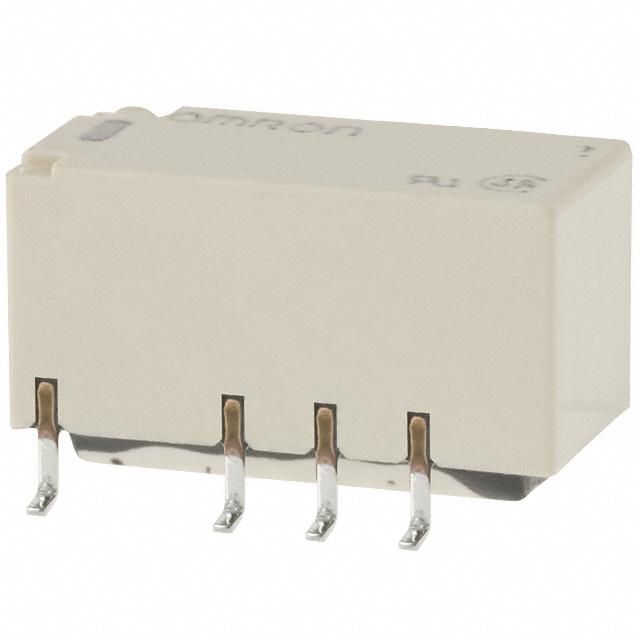

Product Images
